Huaguang Thermal CTP Edition Technical Features and Applications (1)

   I. Introduction

     The speed of CTP technology, the most popular technology in the printing industry today, has been popularized and applied in China in recent years. According to reports, the total number of CTP systems installed in China has exceeded 200 units.

     Thermal CTP plate, according to the development has been divided into: 1 need to preheat the thermal negative plate - the first generation of thermal CTP plate; 2 does not need to preheat the thermal positive plate a second-generation thermal CTP plate 3 The thermal phase change plate that does not require chemical development - The third generation thermal CTP plate; 4 The plate for thermal newspaper - The new development of the thermal system.

     The infrared absorbing dye in the thermal layer of the thermal CTP plate absorbs infrared laser light to generate heat, and when the heat reaches a certain temperature, the acid releasing agent induced by the thermal decomposition generates acid. When the plate is heated at 130-value="140" unitname="°C">140°C for about 30 seconds, the acid reaction of the phenolic resin and the catalyst in the exposure zone is bridge-cured and insoluble in the developer solution." target="_blank "> Developer to form the image area, the unexposed area dissolves in the developer to expose the aluminum-based sand layer and become the non-image area. The thermal cross-linked plate has a low sensitivity to natural light, so it can work under the light room. Because of the different resins used in the thermal plate, the imaging mechanism is also different, most of them are cross-linked and cured, and the acid is produced by the photo-induced acid generator, and the heat is generated by the infrared absorber. The third generation thermal plate does not require any chemical The process can be used directly for printing.The heat-sensitive printing plate used in the newspaper industry requires high sensitivity, and the processing process is relatively complicated when used, such as removing the film and preheating the program.

The continuous popularization and popularization of CTP system in China has promoted the research, development and production of thermal plate. It is located in the west of Wolonggang, Nanyang City, southwest of Henan Province. It is the second film factory of Lekai Group, which is a research and production base for printing photosensitive materials in China. Since 1995 , it has been developing a silver salt composite CTP plate, followed by the silver salt diffusion CTP plate. , thermal CTP plate, photosensitive CTP plate, violet laser CTP and other computer plate plate research and development. Dijiao developed the thermal CTP plate to develop negative graph thermal CTP plate. In May 2001 , it took the lead in the domestic market. Now more than 20 thermal CTP system used Huaguang TN-type negative-thermal CTP in 2002, the market TN-type thermal CTP of more than 100,000 m2. The second-generation thermal CTP board is also being developed, Huaguang TP positive thermal CTP plate, will soon be put on the market.

     Dijiao began to cooperate with the Institute of Applied Chemistry of Beijing Normal University in 1998. The development and development of the thermal CTP plate has progressed very quickly. In 2000 , the prototype plate was used to meet the requirements for use. In the fifth session of the Beijing International Printing Exhibition in 2001 , the further improved TN -type CTP edition was collaborated with the Creo thermal CTP machine to perform live demonstrations, thus attracting the attention of customers applying CTP technology at home and abroad.

     Huaguang TN-type thermal CTP is the only country currently has commercial CTP plate. As the first-generation thermal CTP plate, it needs to be preheated when it is used. It is easy to grasp, low in price, excellent in performance, and well-received in the market, so it is quickly recognized by many domestic users. In particular, manufacturers of CTP systems originally equipped with preheating equipment are more interested in Huaguang TN -type thermal CTP plates. In addition, the negative rate of negative thermal CTP plate is significantly higher than that of positive CTP plate, which is also the reason why many domestic users choose negative thermal CTP plate.

     II. Introduction to the performance of Huaguang TN thermal CTP

     Huaguang TN thermal CTP plate uses imported high quality aluminum plates specially designed for the production of CTP plates. A special electrolytic oxidation process forms a dense multi-layer composite sand grain structure and a dense oxide film layer on the surface of the aluminum plate, so that it has excellent wear resistance and precise dot-reduction effect during printing. A connecting layer is applied between the substrate and the heat sensitive layer, and then an advanced coating device is used to coat the heat sensitive resin layer. The thermosensitive resin layer uses a special photothermal conversion material, so that the plate material absorbs light energy with high efficiency, and is suitable for light room operation.

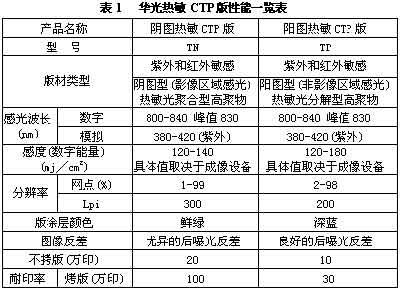

     Huaguang thermal CTP board has two models: TN and TP . TN type is a negative-type thermal CTP board. TP -type is a positive-type thermal CTP board. The performance of the two types of plates is shown in Table 1 .

Nnecttype="rect" gradientshapeok="t" o:extrusionok="f">

Table 1
