Nowadays, it is a high-tech network era. You can see many computers in your home, in the office, and so on. But when many of us use the computer, just open the host and the screen and start working. But friends know that their computer is because they can use it? Everyone knows that it is necessary to use the network cable, otherwise you still have to go online to check a lot of information, here, Xiaobian teaches you how to wall cable outlet Connection method .

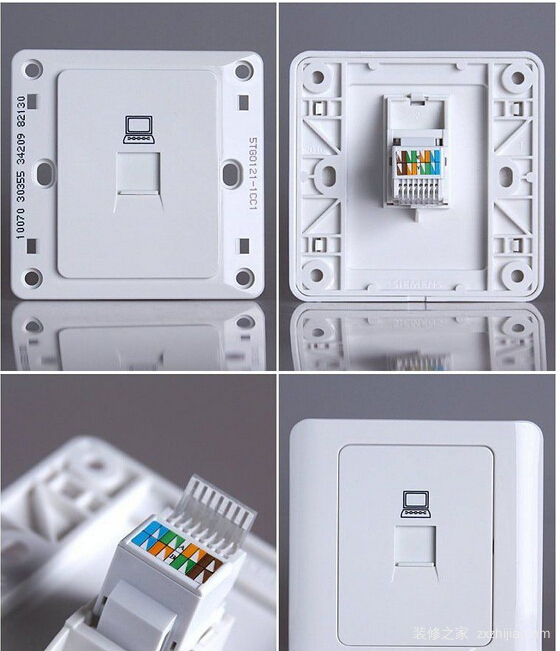

First, the wall cable socket connection
1. The location and quantity of the network cable socket are determined to facilitate the use of household appliances.
2. The beauty of interior decoration plays an important role. The layout of the network cable socket should be based on the indoor location of the household appliances and the planned position of the furniture.
3, and should pay close attention to the relevant professional cooperation with building decoration, in order to determine the correct position of the network cable socket.
4. First, we need to peel off the outer part of the cable and expose the cable inside. It is about 2cm, or longer.

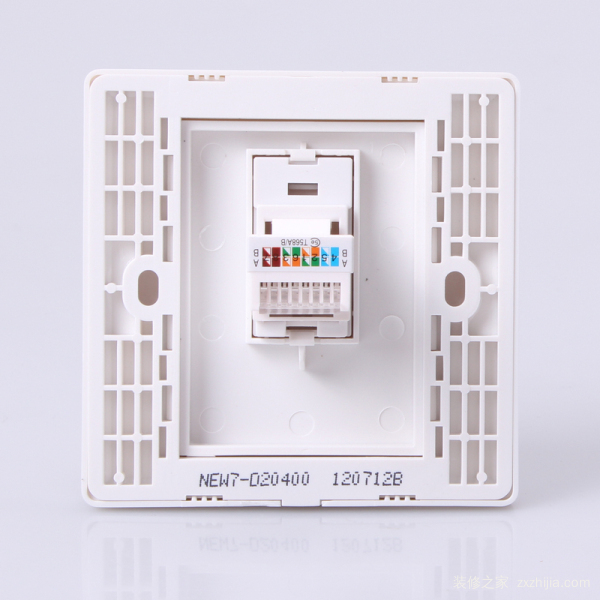

5. Set the standard rules and put the thread into the slot. The T568B standard is generally used more. In the network engineering using three types of twisted pair, five types of twisted pair, and enhanced five types of twisted pair, the wiring standard of T568B is generally adopted. When five types of twisted pair are used, the transmission is carried out. The rate can reach 100Mbps.
6. Use the tool to force the line down, snap it into the module, and cut off the excess thread.
7, then the other thread heads can be cut, so that the wall cable socket connection is completed.
Remarks: T568A connection: green white, green, orange white, blue, blue white, orange, brown white, brown.
T568B connection: orange white, orange, green white, blue, blue white, green, brown white, brown.
Second, the wall network cable socket notes
1. Some network cables are surrounded by four white and green blue-brown lines. For this situation, you need to pay attention to each group of two lines and send them to other lines. Otherwise, if you are confused, you will not know. Take one is white brown, white green, white orange, white blue.
2. Do not press the line after each separation. Wait for all the lines to prevent the number and then use the wire cutter to make the line one by one.
3. The wire pliers are divided into two types: the inner side and the outer side. The outer side is long. It is very easy to cut off the excess line on the outside after being hit. Therefore, if you accidentally put the outside side on the inner side of the network cable socket during the practical process, Cut the network cable, so you should pay attention.
4. Your home can install a network cable socket at multiple points (bedroom, dining room, bathroom, living room, study room...). The socket is connected to the cat through the pre-embedded network cable.
5, this way, you are in the bedroom, dining room, bathroom, living room, study room..., just plug in the computer network cable to find a network cable socket, you can go online.
6, use this thing also use cats? Then you said that I see cats now, but it seems that it will not take long to fiber-optic, how to do? Great change at home?
7, this thing (network cable socket) is just a socket, it can not replace the cat.
8. No matter whether it is a broadband cat or an optical fiber, there is only one entry point. If you want to wire the Internet at multiple locations in your home, you have to route it in advance and bury the wall cable socket at multiple points.
9. Otherwise, when you want to connect to the Internet in the future, you have to pull the line, chaos, and it is easy to cripple.
The above is the connection method of our wall cable socket and some matters that need special attention when connecting. Now when friends install and use the computer later, because they know the connection method of the wall cable socket, they know how to do it first. Use your own computer in a faster time. Of course, there are still some companies that need a lot of computer equipment. If you learn this, you will not bring you faster and better efficiency when you install the computer! You still have the knowledge of decoration that you want to know. You can pay attention to our decoration home network.
