Air supply in the standard of salt spray test chamber

If the salt spray test box enters the filter in good condition, the compressed air supplied to the air saturation tower should be free of oil or dirt (Note 6). This air should maintain sufficient pressure at the bottom of the air saturation tower, and the air above the air saturation tower should meet the pressure values ​​recommended in Table 2.

Note 6: Air passing through a suitable oil or water extractor (commercially available) should be free of oil stains and impurities, and any oil stains should be prevented from entering the air saturation tower. Some oil or water extractors have an expiry date, which should be considered for proper maintenance.

The compressed air supplied to one or more atomizing nozzles should be adjusted by introducing it to the bottom of the tower filled with water. A conventional method of introducing air is to use an air dispersion device (X1.4.1). The water must be kept automatically to ensure sufficient moisture. The usual specification is to maintain the temperature in the tower between 46 ° C and 49 ° C (114 --- 121 ° F) to compensate for the cooling effect created by the expansion of the air during the atomization process to generate air pressure. Table 2 shows the temperature at different pressures, which are usually used to compensate for the cooling effect produced by the expansion of the air to create the air pressure.

Attention should be paid to the relationship between temperature and pressure in the salt spray test tower, because this temperature-pressure relationship has a direct effect on maintaining an appropriate collection rate (Note 7).

Note 7: If the temperature and pressure in the air saturation tower exceed the temperature and pressure values ​​in the specification, and the appropriate collection rate is achieved as described in 10.2 of this regulation, then other devices for adjusting the corrosion rate, such as sample control devices Use (performance control panel in test operation).

Air supply in the standard of salt spray test chamber

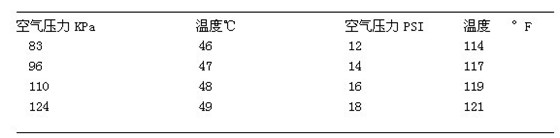

Specification of temperature and pressure applicable to the operation of the upper part of the air saturation tower at 35 ° C (95 ° F) Table 2
