Computer controlled voltage breakdown tester

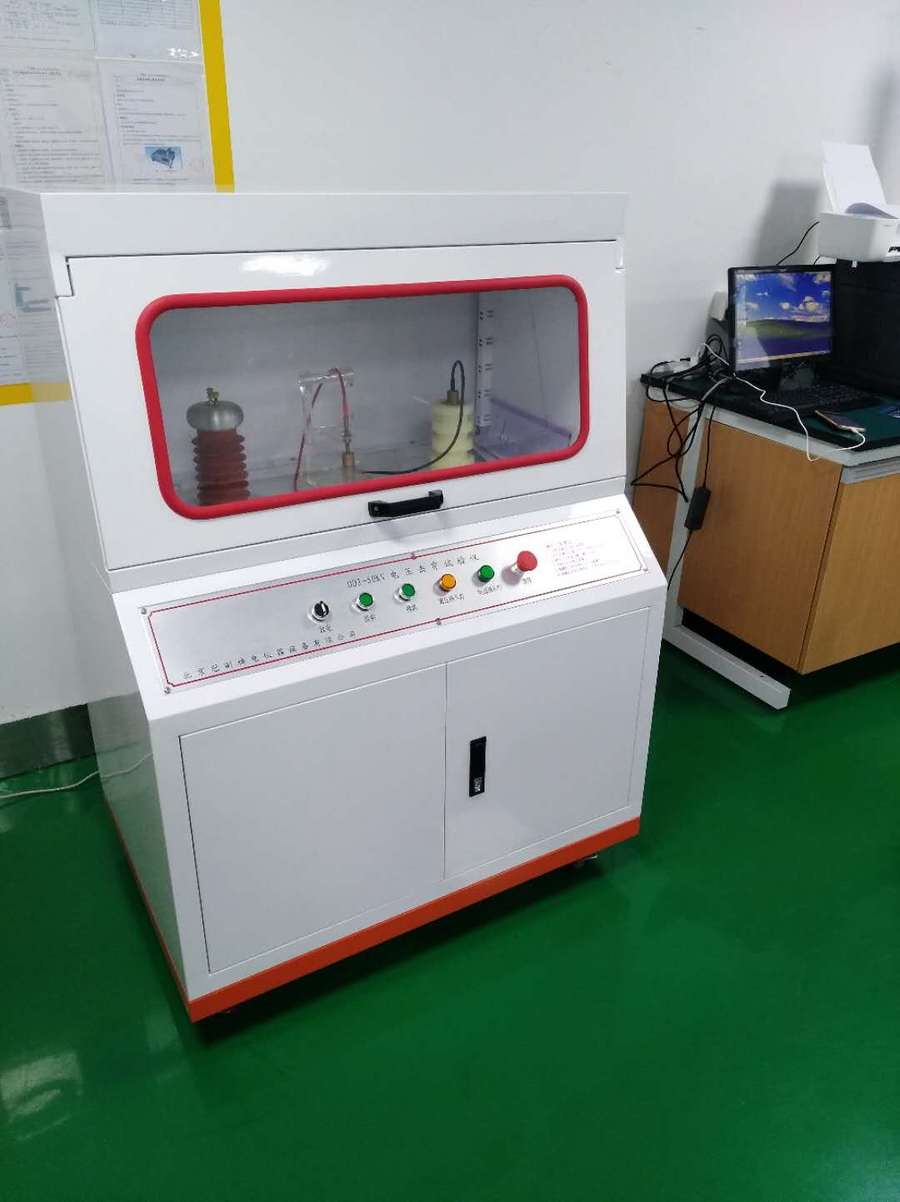

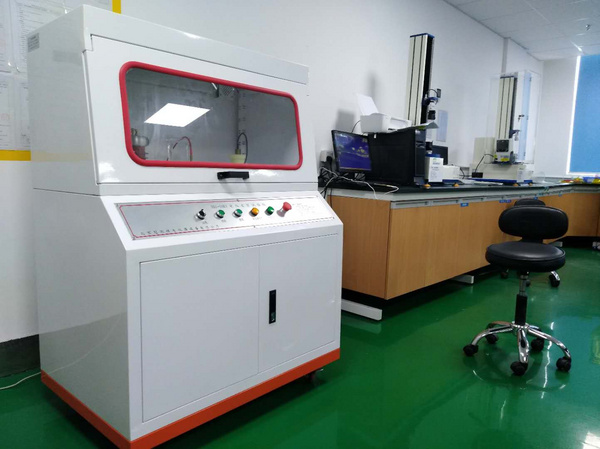

The customer's office area, equipment testing and operation are smooth, and the next cooperation will be carried out if necessary.
safety protection
This instrument has relatively complete safety protection measures:
The circuit protection control of this test instrument:
(1) Overvoltage protection (2) Overcurrent protection (3) Short circuit protection (4) Leakage protection (5) Software misoperation protection
fulfill the standard
GB / T 1408-2006 Test method for electrical strength of insulating materials
GB / T1695-2005 vulcanized rubber power frequency voltage breakdown strength and voltage strength test
GB / T3333 Test method for cable paper power frequency voltage breakdown
HG / T 3330 Insulation paint film breakdown strength test method
GB / T 12656 Capacitor paper power frequency voltage breakdown test method
ASTM D149 Test method for dielectric breakdown voltage and dielectric strength of solid electrical insulating materials at industrial power frequency.
Software function
01. Software platform: WINDOWS window operation platform, intuitive interface, easy to operate
02. Curve display: the test curve can be displayed dynamically during the experiment
03. Data export: You can import the EXCEL table to the test results
04. Experiment report: You can manually set the report name and print the experiment report
05. Test method: DC test and AC test can be flexibly selected according to requirements
06. Test method: You can choose breakdown voltage, withstand voltage test, gradient test according to your needs
07. Parameter setting: different parameter values ​​can be flexibly set according to different test methods and test methods
08. Sample setting: flexible setting of sample parameters of different standards
09. Personnel management: set user name and password, different operators log in to conduct different tests, and do not affect each other
10. Standard selection: It contains different standards and can be chosen according to the needs
11. Continuous operation: During continuous operation test, you can directly end the test in the software and conduct a second test
The company has won the unanimous recognition of the vast number of users with its exquisite products, superb technology, excellent quality and elaborate service.
Guanshi Company guarantees that all the products they supply are standardized production, rigorously tested and qualified before they leave the factory, and the performance is excellent
We understand that your company takes price as a very important indicator when purchasing products. At the same time, we also know that when your company is actually using it, more attention is paid to product quality and service. Cost improves product quality, and will never reduce product quality in order to please customers.
skills requirement
01. Input voltage: AC 220 V
02. Output voltage: AC 0--50KV;
DC 0-50 KV
03. Electrical capacity: 3KVA
04. High voltage classification: 0--5KV; 0-10KV; 0--20KV; 0--50KV
05. Boosting rate: 10-5000V, which can be set manually in this interval. At present, domestic instruments that can achieve this function
06. Test method:
DC test: 1, uniform speed boost 2, gradient boost 3, withstand voltage test
AC test: 1. Uniform speed boost 2. Gradient boost 3. Pressure test
07. Breakdown judgment mode: 1. Voltage judgment stop 2. Current judgment stop
08. Voltage test accuracy: ≤ 1%
09. Electrode specifications: 1. Sheet electrode ï¿ 25mm two sheet electrodes ï¿ 75mm each
2. Two enameled wire electrodes
3. Two tube electrodes
10. Host size: length, width and height -1000 * 700 * 1500 (MM)
11. Operation table size: length, width and height -800 * 700 * 650 (MM)
12. Material of protective cover: white transparent organic glass
13. Oil tank size: length, width and height -300 * 200 * 150
14. Equipment weight: about 100KG
