Kaifeng Jinchangbu Wind Pipe Co., Ltd.

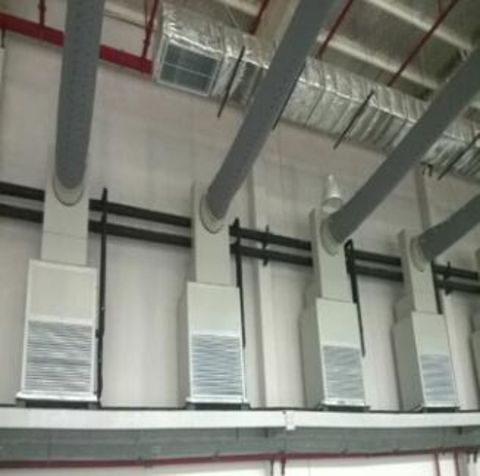

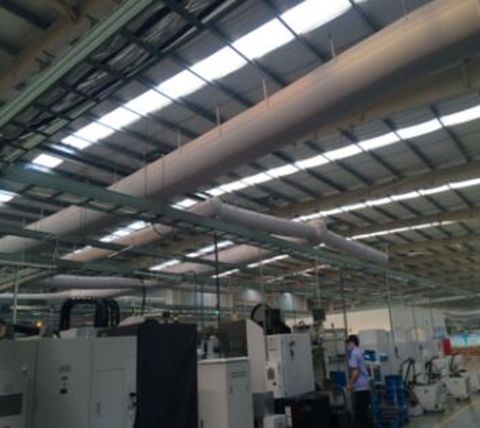

1. Special air duct for industrial plant

The special air duct of the industrial plant adopts the permeable fiber to adopt the hole type air outlet mode, which can meet the air supply requirements of different posts, and has a large air volume and a large air outlet area without any noise and no blowing feeling. The special air duct of Jinchang Industrial Factory is made of flame retardant fiber, which is safe and durable. Jinchang special cloth duct is light in weight, easy to install, and comprehensive in cost-effective, which greatly saves construction costs.

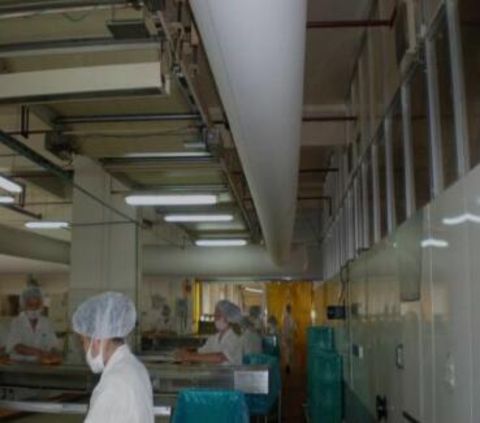

2, special air duct for food processing

The dust and dust of the food production place are many. The wind speed of the air outlet of the traditional air supply pipe system is high, which is easy to cause dust and the cleaning cost is high. The wind speed of the air duct of the air duct is controlled below 0.4M/S, and the cost is low, antibacterial, environmental protection and cleaning are convenient, which greatly reduces the operating cost and improves the production quality of the manufacturer.

Unlike traditional metal ducts, the fiber air distribution system is specifically designed and manufactured for each project. The Jinchang air distribution system can be designed with a simple straight pipe system or a more complicated appearance. The accessories include arc elbows, T-shaped pipes, cross-shaped transition pipes or other connecting pipes. Its diameter can range from 160 mm to 2000 mm.

Whether in industrial plants, retail malls, schools, government or commercial buildings, warehouses, food processing plants, and temporary or permanent buildings. If it is a design of an open ceiling system, the Jin Chang cloth system is the best choice for quality assurance.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.

3, hotel hotel special air duct

The Jinchang fiber fabric distribution system is made of special fiber, which uses fiber penetration and different forms of air supply openings or slotted air supply holes to uniformly and flexibly deliver airflow to a designated space to form an airflow distribution device. And it is very easy to install, disassemble, clean and maintain, which greatly compensates for the shortage of other ducts.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.

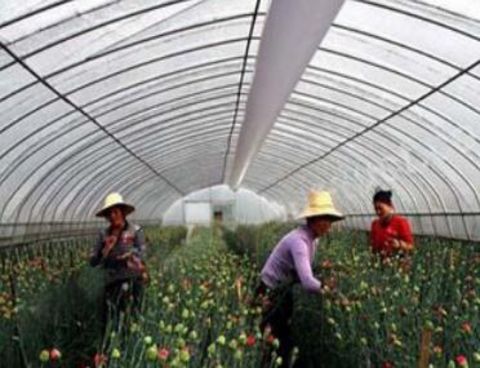

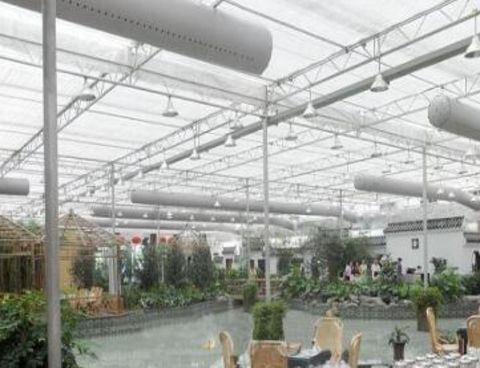

4, special ventilation ducts for greenhouses

Jinchang bag air duct system is a unified and uniformly distributed air supply and air distribution system. It is different from the traditional metal air duct system by distributing hot and cold air through the diffuser. Not only the air supply is more uniform and comfortable, but also the air supply area is more. Large, the air supply efficiency is higher, significantly reducing power consumption, in line with the economic development requirements of energy saving.

The Jinchang duct system distributes the air evenly through the fiber gap of the pipe wall or through the specially designed air outlet hole, effectively solving the problem of air conditioning design in the summer cold air delivery and winter hot air delivery, ensuring uniform and even distribution of indoor air. . Jinchang fabric air duct adopts unique fiber cloth. It is environmentally friendly, energy-saving, comfortable, convenient, easy to clean, and easy to reuse. It has been recognized by users and has gradually become a new environmentally friendly air supply to replace traditional air ducts. The way the system is ventilated.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.

5, special air ducts for warehouses and cold rooms

The storage ducts are mainly made up of air outlets, which use fiber-permeable fabrics, indoor air pollution, uneven ventilation and other issues. In addition, the storage duct is light in weight, easy to install and clean, and has uniform airflow. It integrates static pressure box, insulation material, ventilation duct, tuyere and damper into one, saving cost and comprehensive cost performance. The whole system is about 35% more energy efficient than traditional air ducts. The main problem of the air duct for the cold storage room is to solve the problem of the condensate of the air duct, so that the air temperature inside and outside the air duct is the same, and in this case, there is no problem of condensed water.

Jinchang duct air-cooling room air duct has been installed and used in the refrigerating workshop of well-known food companies, and is highly recognized by customers. The air duct for cold storage has the advantages of light weight, uniform air distribution, wide air outlet area, easy installation and cleaning, and is the best choice for ventilation equipment in the refrigeration industry.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.

6, basements, special cloth duct pharmaceutical warehouse

It can effectively solve the problems of indoor air pollution, some unpleasant smells, uneven ventilation, etc., and provide a comfortable working environment for indoor personnel.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.

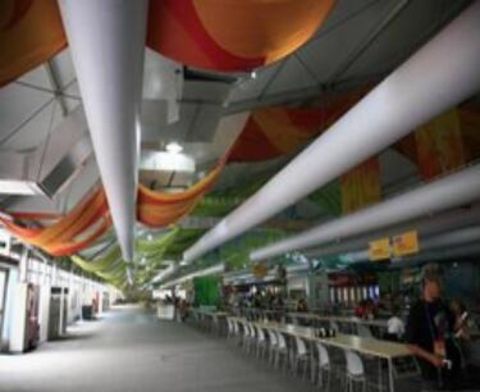

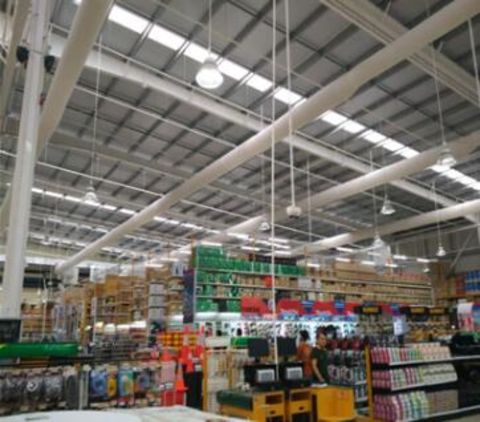

7, special air ducts for shopping malls and supermarkets

The supermarket is a place with a large population density. The ventilation environment can directly affect the quality of the products supplied by the supermarket and the mood of the customers when shopping. Therefore, a good ventilation system is particularly important. It is aimed at the large area of â€‹â€‹the supermarket, the small height, the large flow of people and the closeness of the space. The traditional diffuser has a fixed air supply position and low flexibility, and it is unable to achieve sufficient ventilation air volume. After a series of scientific verification, Jinchang spout permeable duct (air distributor), which can increase the air volume and evenly supply air to meet the ventilation requirements of large-scale occasions.

Moreover, the supermarket is a public place, the use of air conditioners is frequent, and the degree of pollution of the air duct is high. According to the current National Health Regulations for Centralized Air Conditioning Ventilation Systems in Public Places, the air ducts must be cleaned regularly. Jinchang cloth ducts need only use the cleaning agent recommended by the manufacturer for cleaning. Do not add any softener, it is simple and easy. Compared with the traditional air duct system, it is more difficult to clean and maintain, which is more conducive to supermarket use.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.

8, exhibition, office special duct

Kaifeng Jinchang Air Pipe Factory supplies large conference rooms and office-specific air ducts. According to the layout of conference rooms and offices, designers choose the air outlets that match the orifices and nozzles, which not only ensures sufficient air volume, but also meets the meeting. Ventilation requirements in all corners of the room.

The color of the air ducts in the conference room and office is always the same as the color of the inner wall. And in the case of no air supply, the air duct is hanging like a curtain, which is natural and beautiful. In addition, the air duct is simple to install, easy to clean, energy-saving and environmentally friendly, which greatly reduces the cost of the project.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.

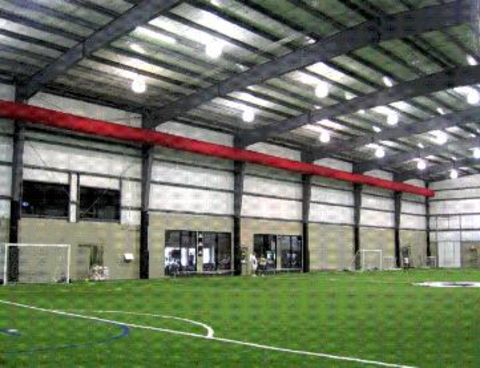

9. Special air duct for stadiums

The stadium requires the air-conditioning system to have a long range of wind transmission, but there are certain requirements for the wind speed. Because when the athletes sweat, the cold wind can easily make them catch a cold, and the spherical nozzle of the traditional wind system is used to supply the wind, in order to make the effective range far, It will result in a particularly high wind speed at close range. It turns out that the airflow organization of this traditional air supply method is not ideal, and the problem of heavier condensation needs to be solved. In addition, hundreds of tons of metal ducts pass through the dome steel structure, which not only greatly increases the roof load, but also increases the construction cost.

In view of the characteristics and requirements of the stadium, Jinchang ducts are made of special fibers, and the special type of permeated or slotted air outlets will not cause condensation when sending cold air or warm air. The air outlet area is large and uniform, and there is no feeling of blowing, which provides a quiet and comfortable environment for the space. The special air ducts of the Jinchang cloth ducts have been installed and used in many gymnasiums.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.

What is Jin Chang fiber fabric duct?

Jinchang duct is regarded as fiber fabric duct. It integrates various functions such as static pressure box, muffler, ventilation duct, diffuse air vent, air volume control valve and insulation layer. It is guided by textile material. The air system of the airflow can also be called: air duct, bag air duct, fiber cloth duct, fiber air distributor, soft air duct, fiber duct, fiber fabric duct, textile duct.

Jinchang duct can be equipped with any fan water-cooled air conditioner duct machine multi-line new fan heater central air conditioner, etc., where ventilation (hot air and cold air) is required.

Jinchang fiber cloth ducts have several advantages

1. The wind output area is large, the wind volume is large, the wind speed is low, there is no blowing feeling, the material is grabbed, the raw materials are grabbed, and the air duct is added to decompose the toxic substances, and the functions such as antibacterial and sterilization are excellent.

2, the duct system through the entire wall of the fiber gap or different forms of slits, nozzles and evenly distributed design of multiple rows of small holes out of the air, the air distribution is uniform at every point, to achieve a truly ideal overall uniform air supply .

3, non-condensed water, the entire pipe wall fiber penetration cold air or heating forms a cold gas layer outside the pipe wall, so that there is almost no temperature difference inside and outside the pipe wall, completely solve the condensation problem.

4, cloth duct system is woven from special fibers, the weight is extremely light, about 1/10 of the traditional metal wind system, especially suitable for the roof without load-bearing capacity.

5, easy to disassemble, can be easily wiped, cleaned, can be reused to improve the indoor air clean quality, to achieve higher requirements for health and environmental protection.

6, cloth duct system material is soft, low wind speed during operation, with the effect of absorbing sound and anti-vibration

7. The whole system is made of soft material. The suspension device is flexible and easy to install. It is the best choice in all kinds of places that need temporary ventilation.

8. The design of the air duct system is simpler than the traditional air supply system, and it replaces the traditional air supply duct, damper, diffuser, tuyere and other single components, accessories and heat insulation materials. It is extremely light in weight and easy to transport and install. The total cost is low, which is 10% of the traditional air duct.

9, outstanding personality, diverse colors, the fabric is permanently flame retardant, so as to meet the needs of different environments.

10. The air duct system is customized and marked according to customer requirements. The processing speed is fast, the installation is convenient, and the construction period is greatly shortened.

Kaifeng Jinchangbu Wind Pipe Co., Ltd.
