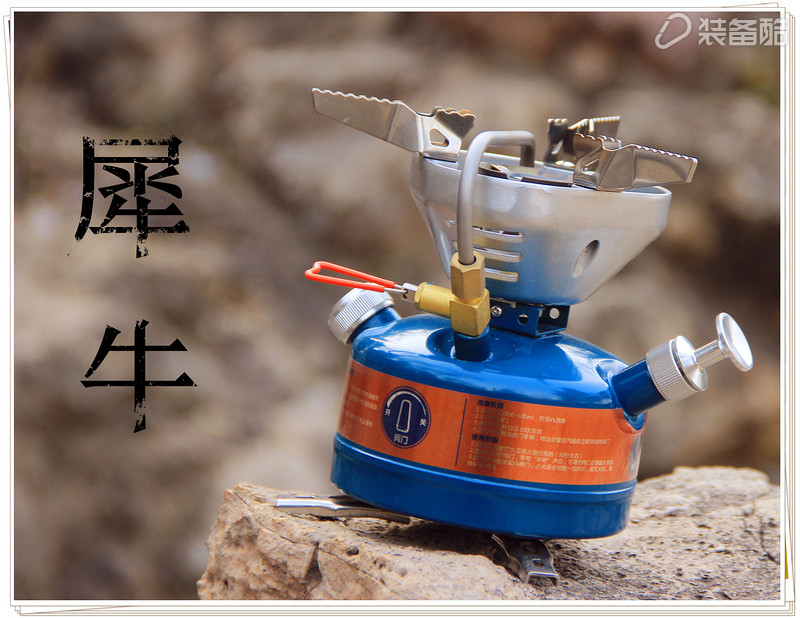

Fire-Maple Rhinos One Oil Oven is the third gasoline furnace developed after the Fire-Maple F3 engine and F5 turbine split-oil furnace. It is also the first integrated oil stove of Fire-Maple. Rhino uses a 5MM diameter bold warm-up tube design. The coarse preheating pipe can vaporize the fuel more effectively, ignoring the low temperature and high altitude, making the fuel burn more completely and improving the thermal efficiency. Rhino's newly designed storage rack can withstand more heavy loads and is suitable for various sizes. The pots can meet the needs of single to multi-person outdoor use.
Design:

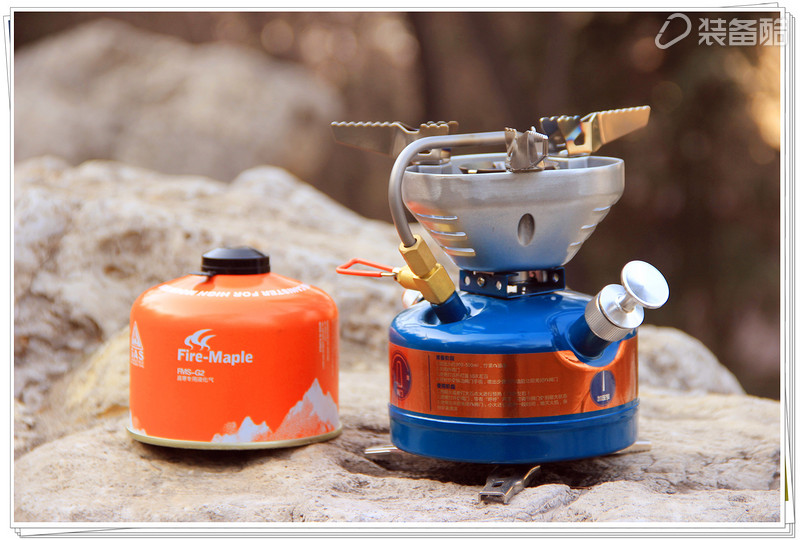

The rhino integrated oil stove uses gasoline as the main fuel, and it is recommended to use high-grade gasoline of 92# or higher. The maximum fuel volume is 500 ml, but it is not recommended to fill up. Next to the fire-Maple G2 gas tank is to give you a contrast, to make everyone More intuitive understanding of the size of the oil furnace. The non-oil weight of rhino is 760 grams, the working height is 170MM after deployment, and the maximum power is 3500W.
As you can see from the picture above, the size of the Rhino Oil Oven is second only to the Titan in the Fire-Maple family, so the positioning of this rhino oil stove is either a self-driver or a long-distance crossing through a horse, which is not suitable for hiking backpacks. use.
The high-strength plastic sealed box ensures that the residual fuel smell is isolated from the outside world. At the same time, the high-strength plastic box plays a role of good protection of the oil stove, allowing us to go out carrying more peace of mind.

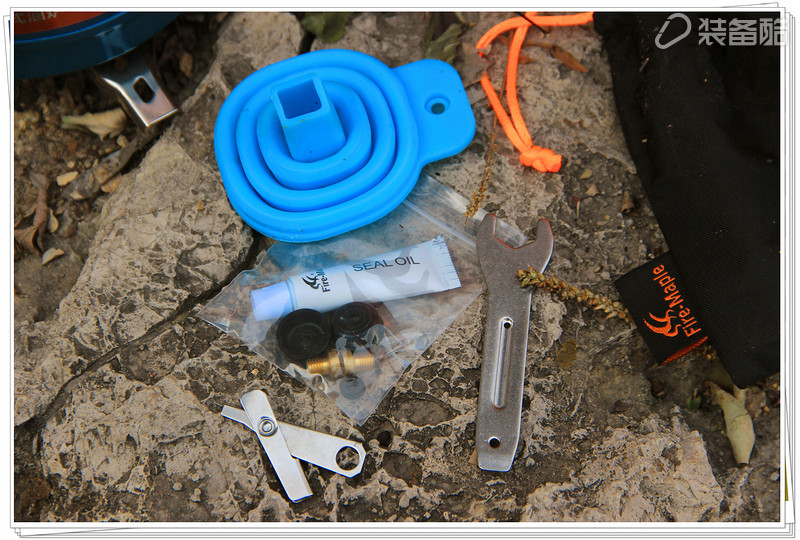

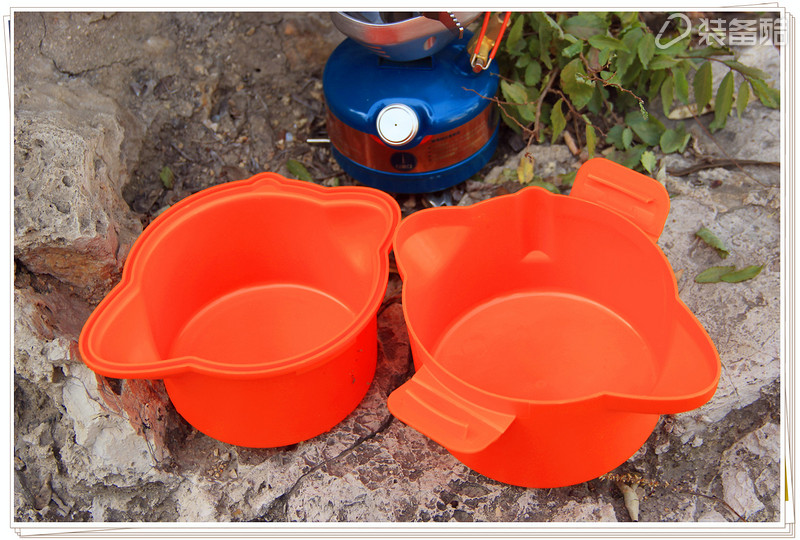

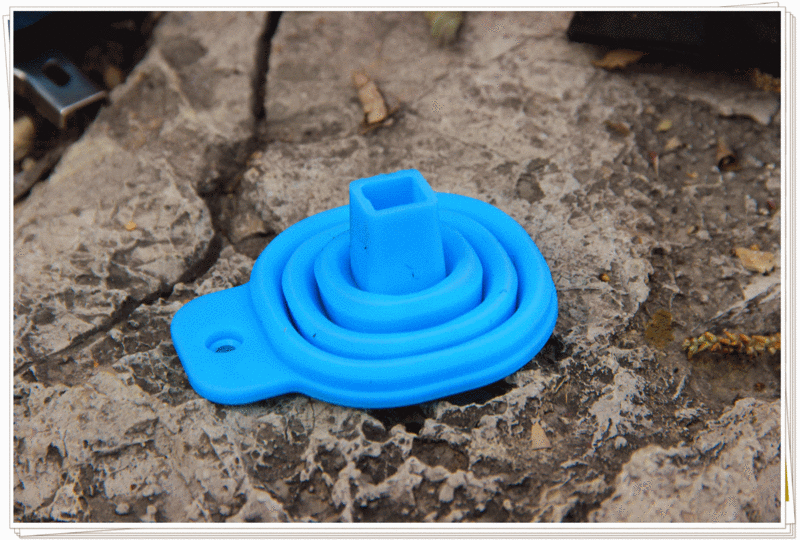

Accessories include a pin, funnel, small wrench, two cups, two grease nipples, two washers, a lubricant, and a tool storage bag. These fittings and tools ensure that the oil furnace in the wild when the problem occurs quickly Replacement and maintenance, to ensure the use. Folding funnel using a silicone material, corrosion-resistant, does not take up space.

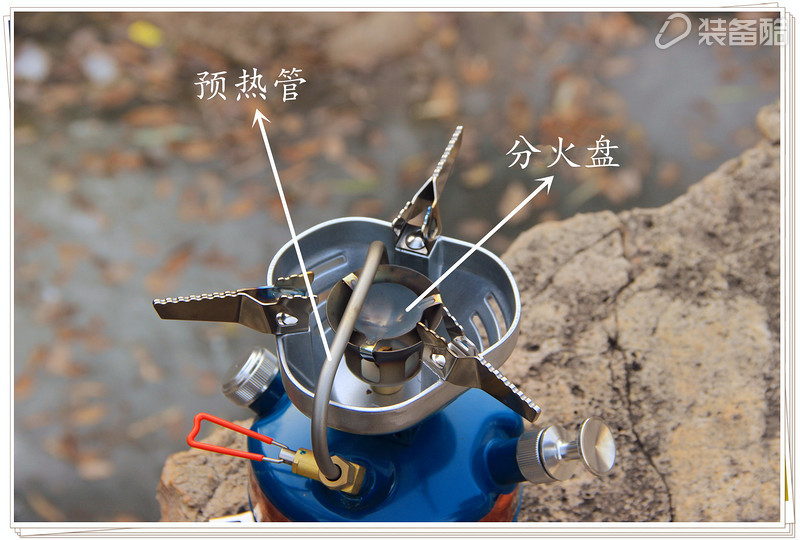

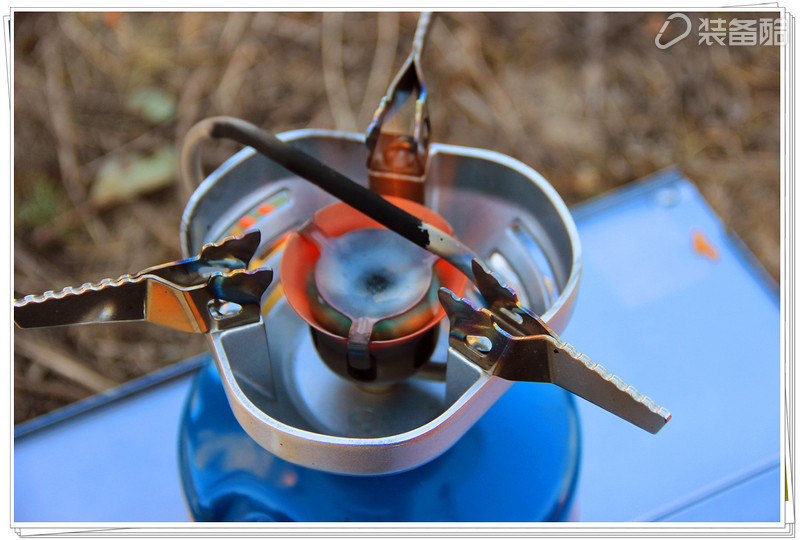

Bold warm-up tube design, shorter warm-up time, more complete combustion, easy to deal with high altitude and low temperature environment.. Stainless steel sub-distributor makes the flame area to be sprayed larger, the heated area of ​​the pan is greater, and the heat is evenly distributed. Cooking dishes taste better.

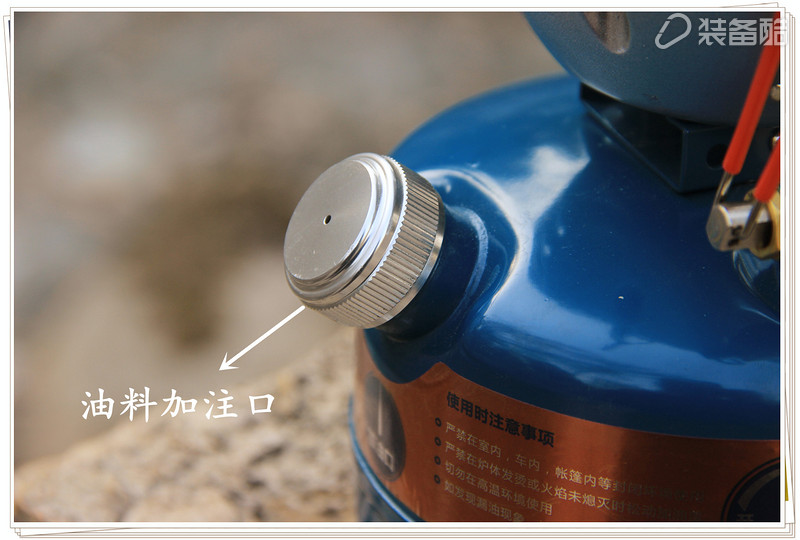

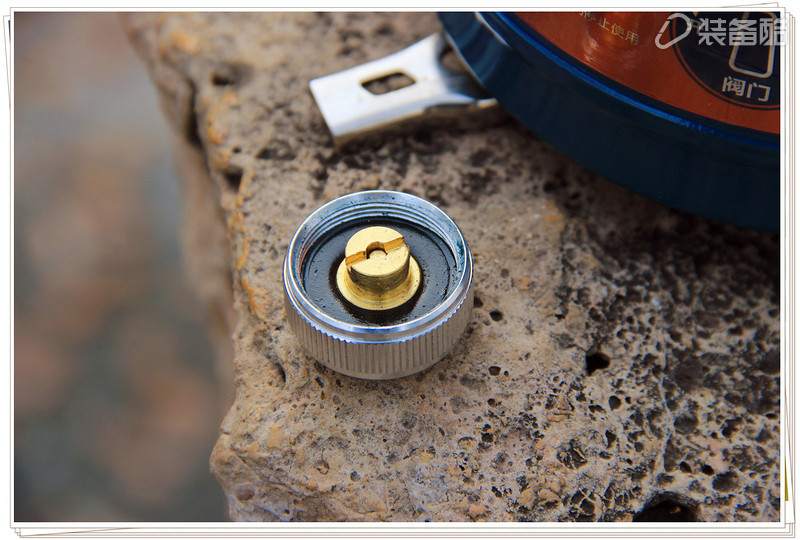

The fuel cap is all-metal, corrosion-resistant, and there is an automatic pressure relief valve inside. When the pressure in the tank is too high, the pressure relief valve automatically releases pressure, reducing the pressure inside the tank and rejecting safety hazards.

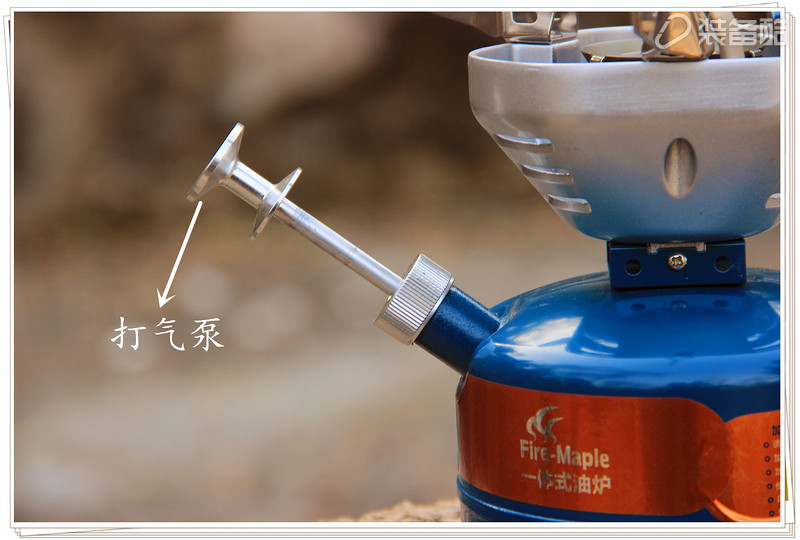

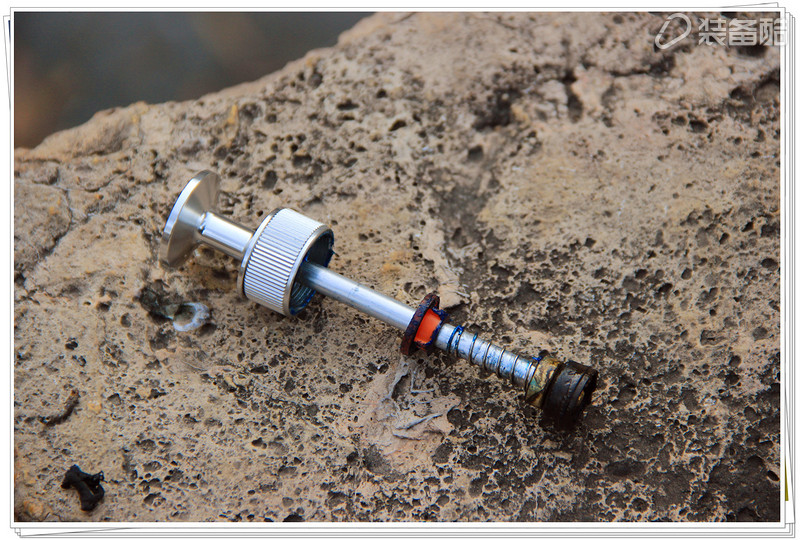

Manual air pump using aluminum alloy material work fine without burrs overall feel very smooth. Each time you use need to suppress about 30 times, you can stop feeling increased resistance. In fact, you can design a pressure indicating valve, when the pressure reaches the requirements will prompt , To avoid excessive or too little air pressure, otherwise do more useless work, time-consuming and laborious but also damage the oil furnace.

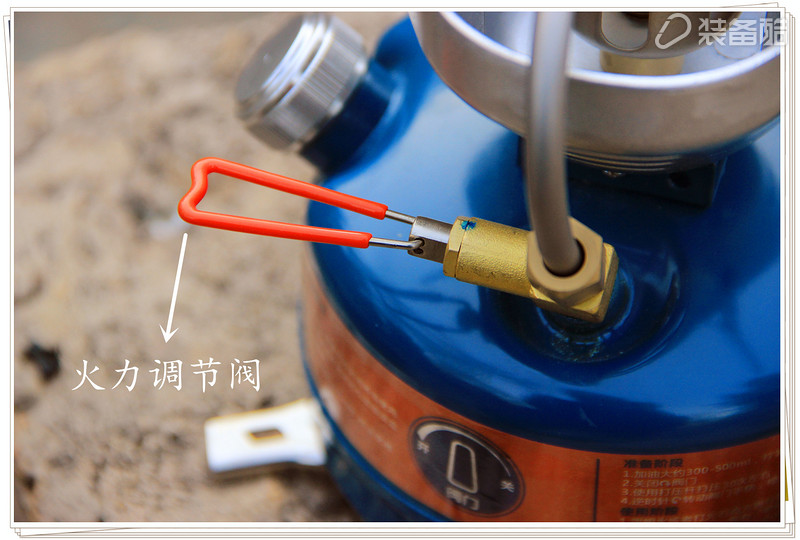

Fire control valve for the steel wire and silicone sleeve, why the space-saving design to become foldable style, but this design of the valve has a common problem, the handle is easy to fall off when the fire regulation, although renewed on the press, but in the end is a problem, And also easy to lose, it is recommended that manufacturers can consider making improvements.

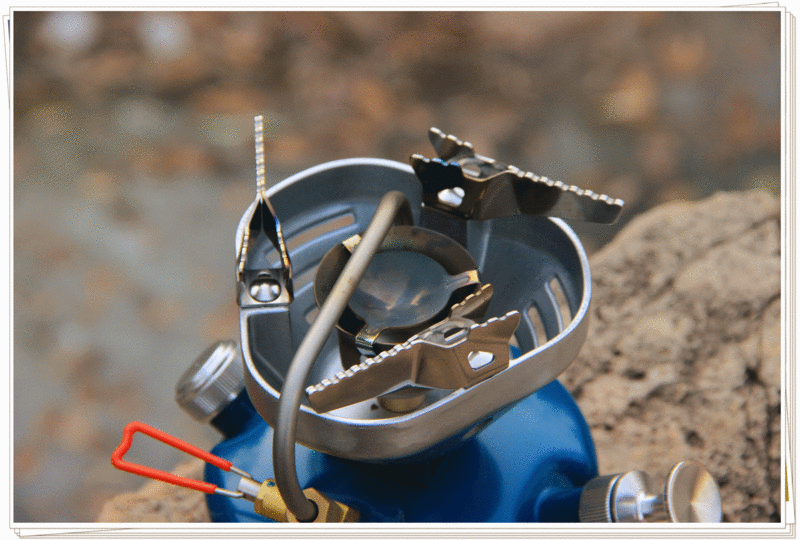

Rhino oven tray is made of stainless steel material, full of materials, good load-bearing, easy to clean. The diameter of the stent after deployment is 186MM, and with non-slip teeth, can be placed for large multi-dining dining use.

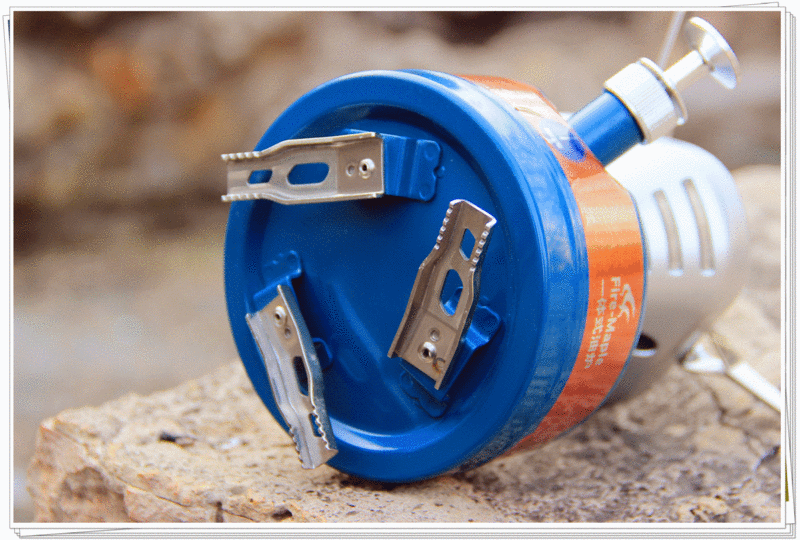

The chassis bracket is also made of 1mm thick stainless steel material, with anti-skid teeth at the end, which guarantees the stability of the furnace whether on the ground or on the slippery ground.
Color printing environmental protection carton box, beautifully printed, product appearance, performance parameters, manufacturers logo, as well as a rhino furnace how to operate the use of the two-dimensional code links are clearly printed in the box, so that consumers at a glance. .
Operation experience:

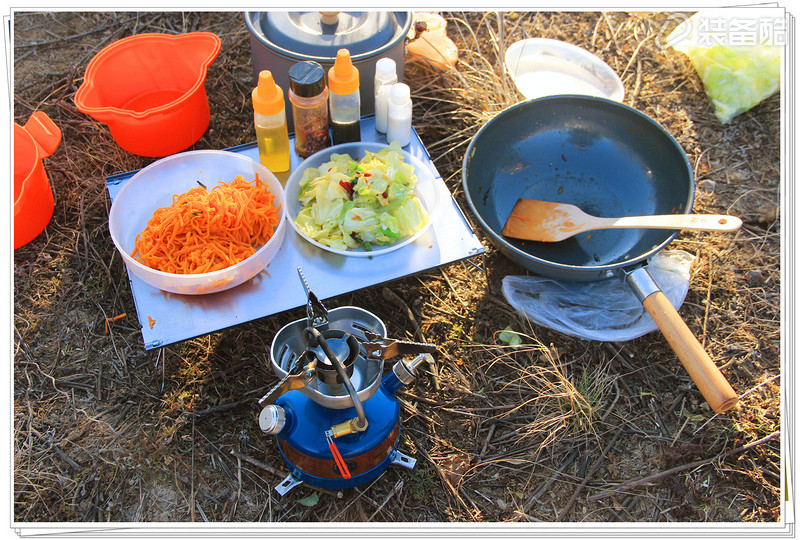

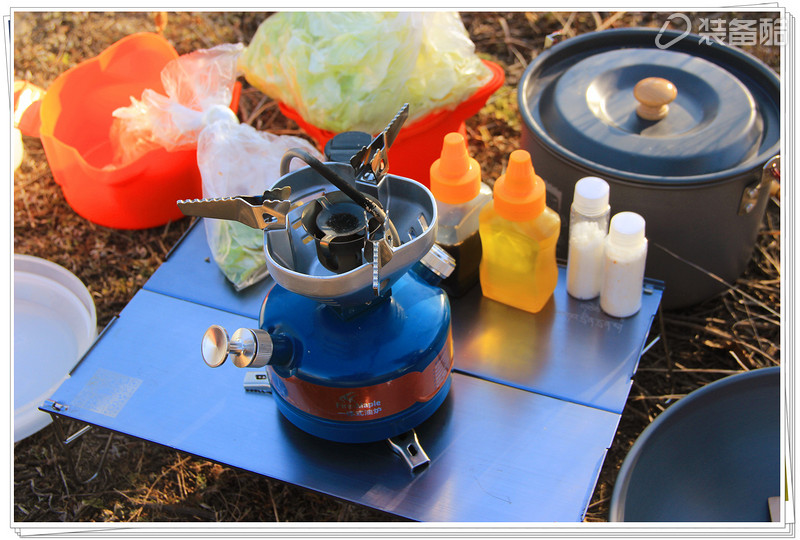

Now the weather in the north is very cold, temperatures are below zero, and there are a lot less camping activities. It is necessary to participate in a mountain trail running at the end of the week. Because it is in the mountains and needs no meals at noon, just take my rhino Different kind of lunch. We have two guarantee points. I prepared fried cabbage and shredded radish, and hand cakes.

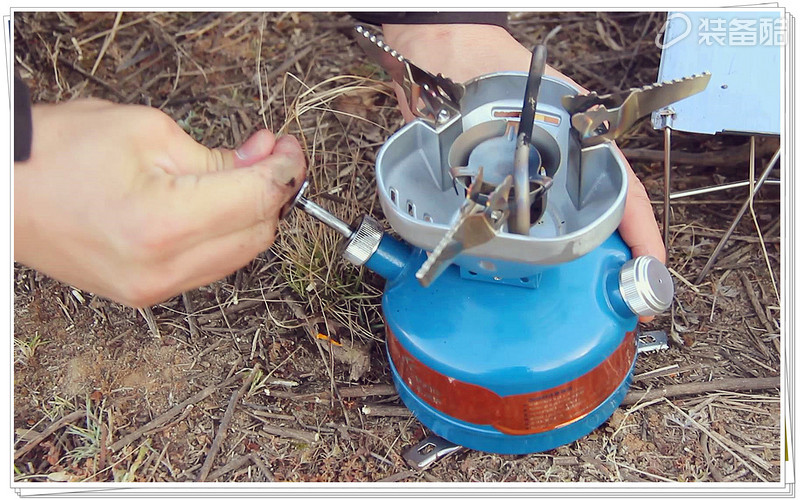

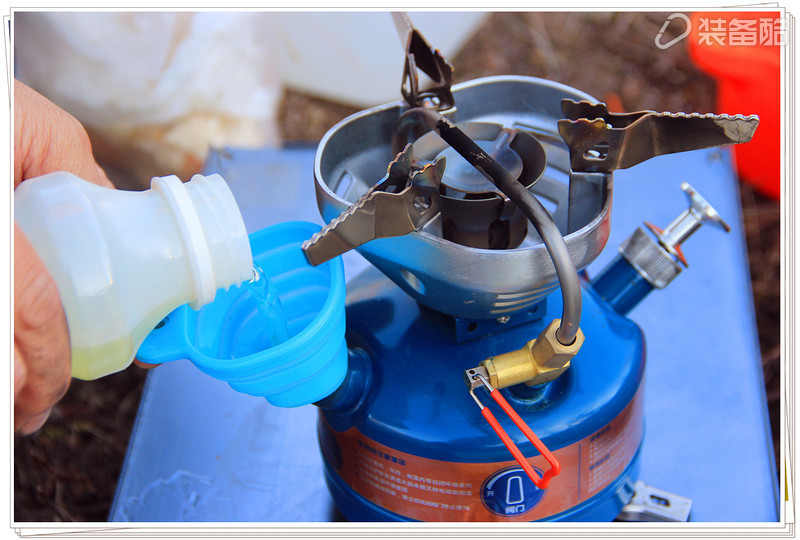

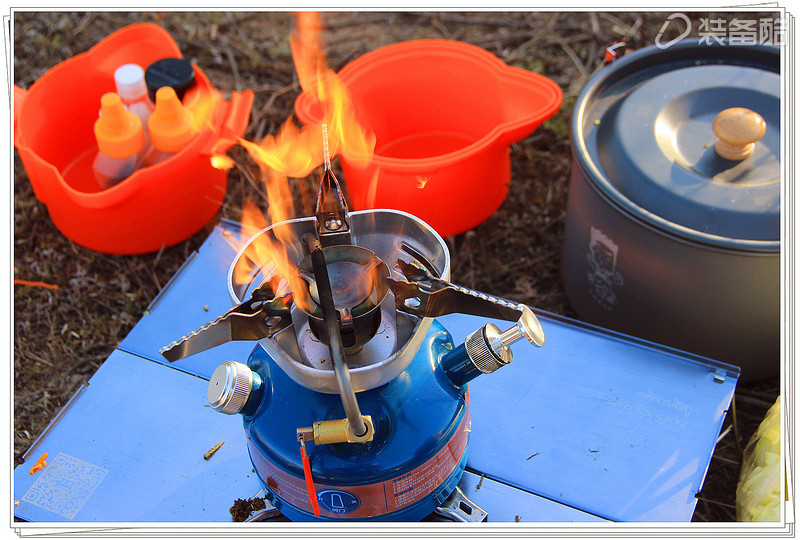

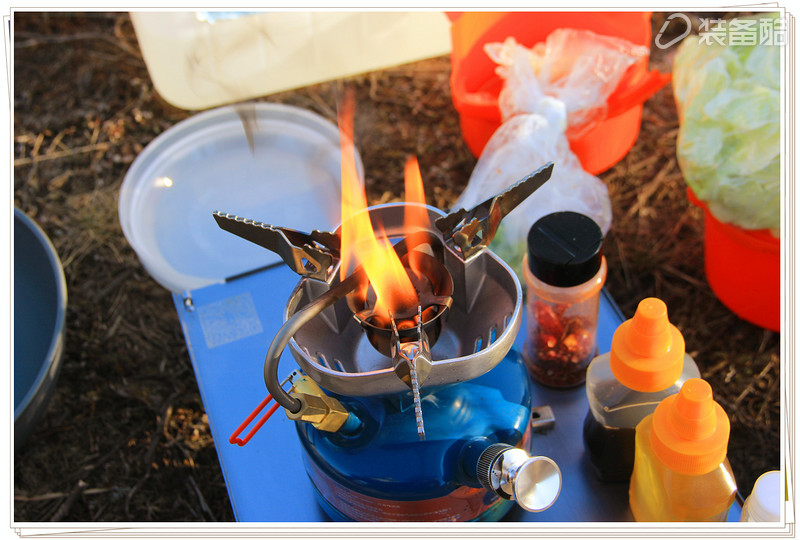

First of all you need to add fuel. Thanks to the help of the funnel, you don't have to worry about the gasoline leaking out while you are refueling, but do not add too much. Check if the valve is closed and you can begin to suppress it. The pressure is about 30 times, but the actual pressure is more than 30 times. Because there is no pressure indicator, it can only be operated by feeling and experience. It is very important to warm up this step. Open the fire control valve and spray it out. After a small amount of gasoline, you need to close the valve and then ignite the petrol. At this time, the petrol is not burning enough and there will be a lot of black smoke and petrol smell. This is a normal need now and you don't need to worry about it. Warm up after about 30 seconds, you can slowly When you open the valve, when you see a blue flame, and there will be a whistling sound, it means that the warm-up has been completed, you can adjust the size of the firepower to normal use. After full warm-up after the flame is not black With smoke and oily tastes, you don't have to worry about the fact that the bottom of the pan will smell blackened food.

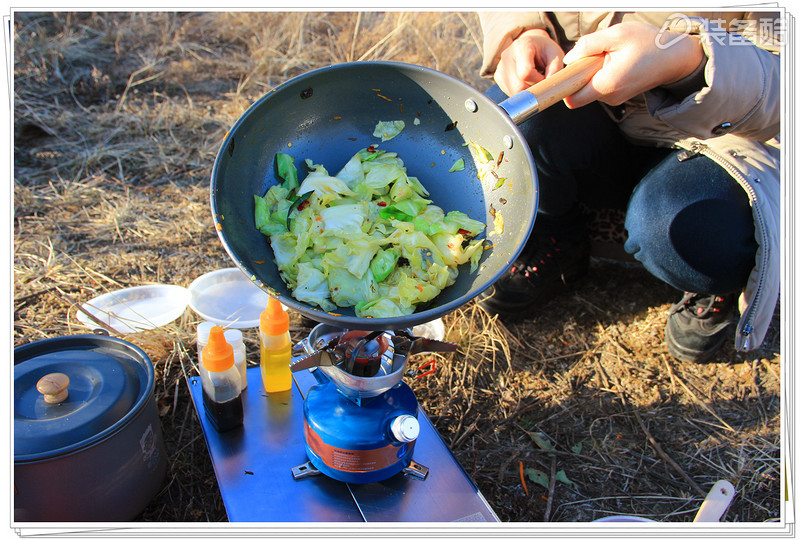

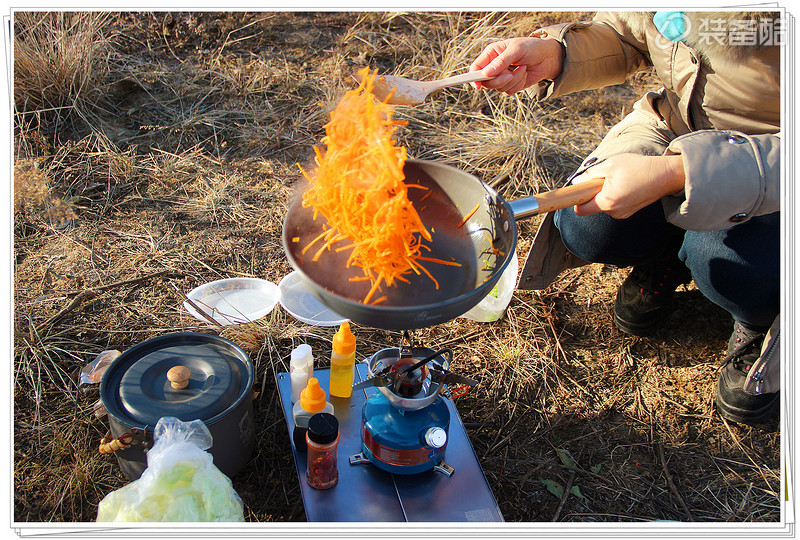

Spicy cabbage and fried red radish, although the two dishes are very simple, but they are in need of fire stir fry, fire small fried food is not unfamiliar, is not as crisp as boiled, poor taste a lot. Rhino The 3500W power of the oil furnace was really fierce. After the valve was opened, the flames looked old and high. The two dishes were pancaked in less than 10 minutes, and the color, flavor, and taste were good.

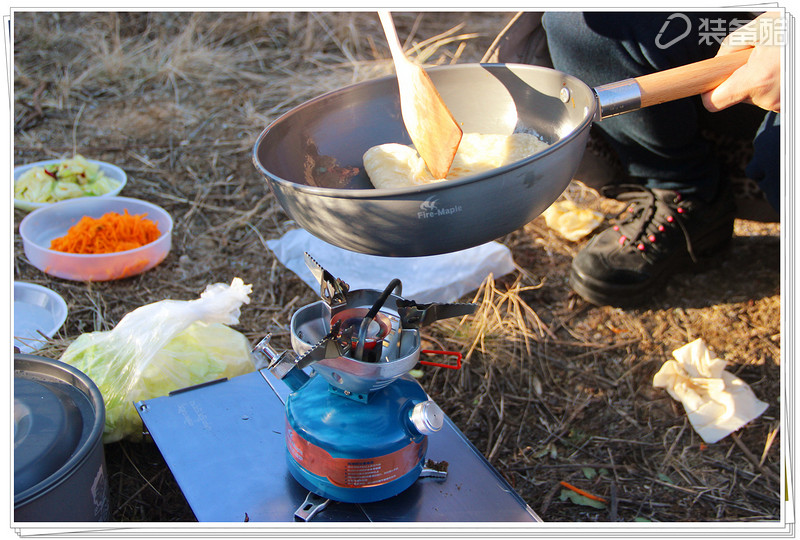

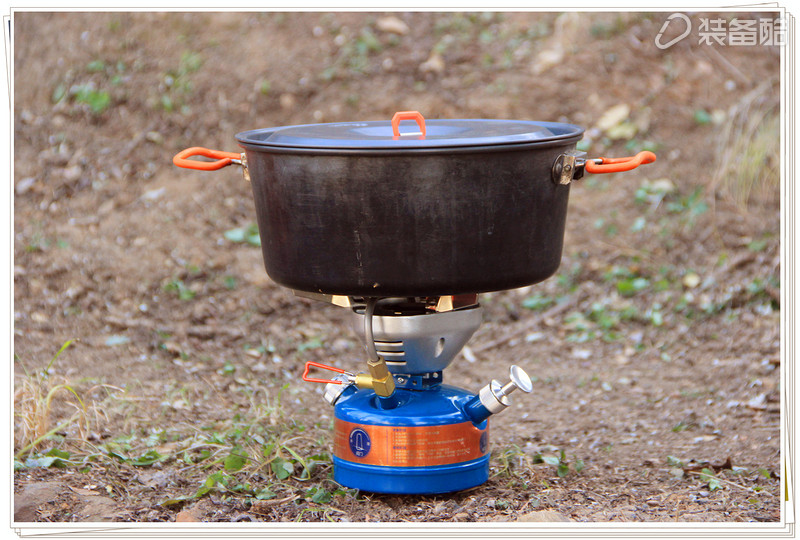

The final staple is hand cake. This firepower requirement does not require much, but it requires a uniform heat at the bottom of the pot, and the performance of the rhinoceros is also very good. In conjunction with the latest listed mountain cottage wok, it is easy to grab the cake on the handle. Well done, and there is no middle burn, the surrounding phenomenon is still clipped, indicating that the rhino's firepower distribution is still very even, to meet the test of a variety of cooking ingredients. Well, said too much, hungry, first Eat something to say.
1. Easy to operate, the large preheating tube configuration makes the preheating speed greatly improved, and the oil furnace can basically enter the working state in less than 30 seconds.
2. The large heating power of firepower is very fast, which is much larger than the power of general gas stoves. It can meet the needs of a single person to many people for outdoor use.
3. The performance of windbreak performance is excellent, and the high-altitude winds and low-temperature environment are still fierce.
4. The innovative design of the non-slip-shaped bracket has good stability, and there is no pressure even if it is put on a large-sized pan.
5. It is a bright spot to have good control over the size of the firepower. Don't worry about sticking pots when cooking rice.
