The latest salt spray test chamber GBT10125-2012 standard appendix A

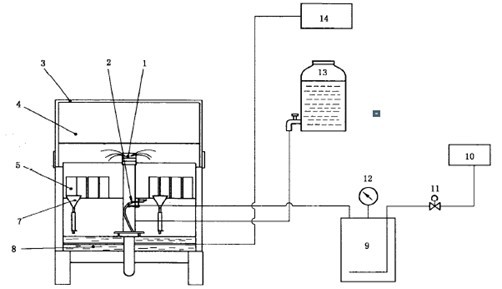

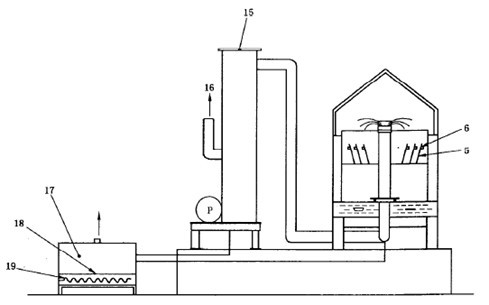

The GBT10125-2012 standard, specifically Appendix A, provides detailed design specifications for a salt spray test chamber. This appendix serves as a reference for the construction and operation of such equipment, ensuring compliance with standardized testing procedures. The design sketch included in Appendix A outlines the key components and layout of the test chamber. Appendix A (informative) Salt Spray Test Chamber Design Sketch  **Description of Key Components:** 1 – Salt-mist dispersion tower 2 – Sprayer 3 – Test box cover 4 – Test box 5 – Sample 6 – Sample holder 7 – Salt mist collector 8 – Wet tank 9 – Air saturator 10 – Air compressor 11 – Solenoid valve 12 – Pressure gauge 13 – Solution tank 14 – Temperature controller 15 – Exhaust gas treatment 16 – Exhaust port 17 – Waste water treatment 18 – Salt tray 19 – Heater **Figure A.1: Front View of the Salt Spray Test Chamber Design**  **Figure A.2: Side View of the Salt Spray Test Chamber Design** After completing the salt spray test, it is essential to properly manage the residual mist and waste water. The system should be treated appropriately before discharging the mist through the building’s exhaust outlet and directing the waste water into the drainage system. This ensures safety, environmental compliance, and the longevity of the testing equipment. Proper maintenance and adherence to the standard are crucial for accurate and repeatable results.
